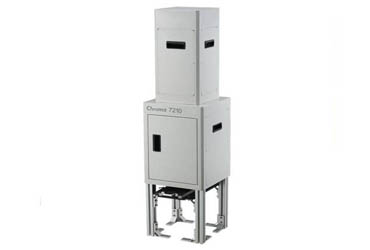

Solar Cell Quality Classifier Model 7210

• Install on the front-end screen printing process or terminal sorting equipment.
• Solar cell front or back side printing defect all can be detected.
• It can detected the defects that generated at PERC & Bifacial process.

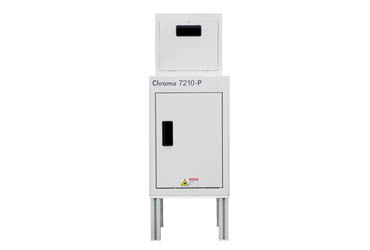

Printer Automatic Optical Inspector Model 7210-P

• Solar cell front-side printing defect inspector
• Detect the defects generated when fabricating PERC and Bifacial solar cells.
• Install on the rotary table during metallization process.

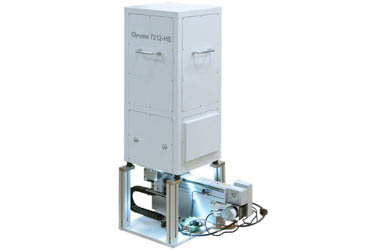

Solar Cell Front-side Printing and Surface Defect Inspector (High-Speed) Model 7212-HS

• Integrated with screen printing line and cell sorting lines from any manufacturers
• Flexible and intuitive SW user interface
• Resolution down to 14 μm/pixel
• Superior stain defects detection

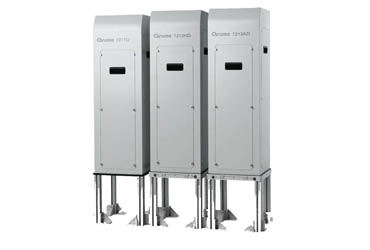

Solar Cell Backside Printing and Surface Inspector Model 7213-AD

• Solar Cell Backside Printing & Surface Inspector (Diffuser type)
• V-cut and flake inspection
• Install on the metallization process and sorting process

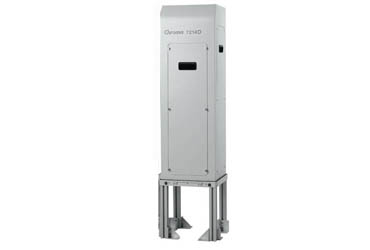

Anti-reflection Coating Inspector Model 7214-D

• Anti-reflection Coating Inspector
• Defects and color variance detection
• Install right after the PECVD or before the metallization process

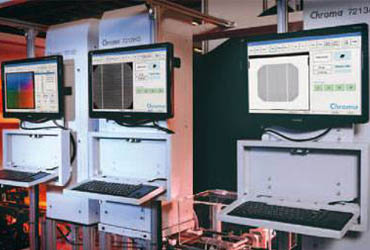

Automatic Optical Solar Cell/Wafer Inspection System Model 7200 series

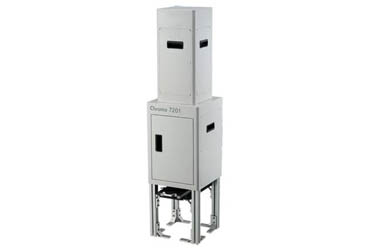

Solar Wafer Geometry and Surface Inspector Model 7201

• Solar wafer geometry and surface inspector
• RGB LED strobe lighting
• High speed inspection

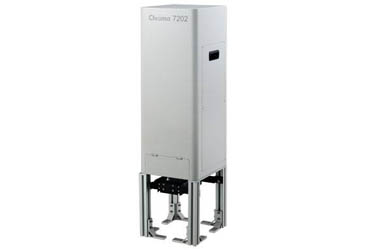

Solar wafer quality inspector Model 7202

• Solar wafer quality inspector
• Accurate grain-size calculation
• Pinhole and chipping inspection

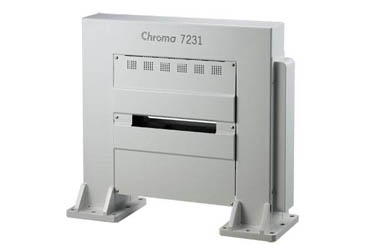

Solar wafer sawmark inspector Model 7231

• Solar wafer sawmark inspector
• EN-50513 2009 compliance
• High reliability
