DC Electronic Load

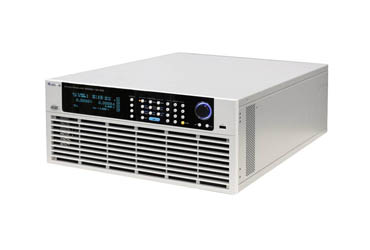

High Power DC Electronic Load Model 63200A Series

Rated power: 2kW, 3kW, 4kW, 5kW, 6kW, 12kW, 18kW, 24kW, Max.240kW (Parallel)
Voltage Range: 0-150V, 0-600V, 0-1200V
User Defined Waveform (UDW)
Sync. Dynamic Control

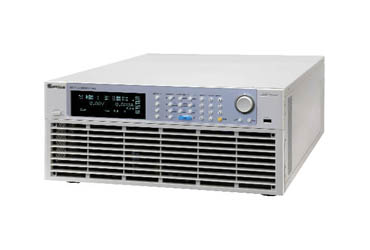

Programmable DC Electronic Load - (Economical) Model 63200E Series

Rated power: 2kW, 3kW, 4kW, 5kW, 6kW, 8kW, 10kW, 12kW, 15kW, 18kW, 20kW, 24kW
Voltage range: 0-150V, 0-600V, 0-1200V
Timing/discharging measurement for batteries

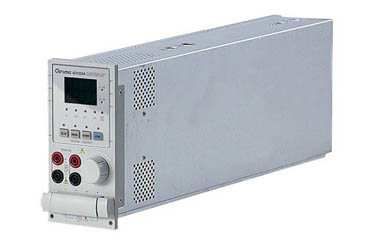

LED Load Simulator Model 63110A/63113A/63115A

Power rating: 100W×2(Dual), 300W
For LED power driver test
Simulate LED I-V curve
Fast response for PWM dimming test

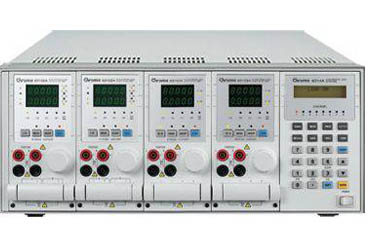

DC Electronic Load Model 6310A Series

Power rating: 200W, 100W×2(Dual), 30W & 250W, 300W, 350W, 600W, 1200W
Wide range 0~600V operating voltage
Up to 8 channels in one mainframe
Dynamic loading with speeds up to 20kHz

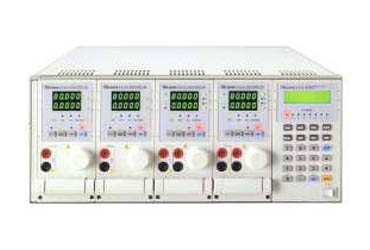

High Speed DC Electronic Load Model 6330A Series

Power rating: 200W, 100W×2(Dual), 30W & 250W, 300W, 350W, 600W, 1200W
Improve operating speeds of load for auto test system integration
Synchronous paralleling control
Synchronous dynamic loading up to 7000W

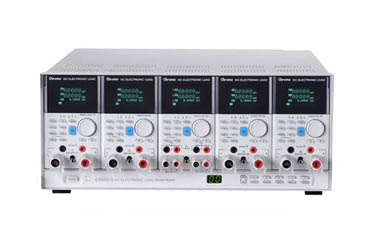

DC Electronic Load Model 63600 Series

Power rating: 100W×2(Dual), 300W, 400W
Sweep function for dynamic loading from 50Hz to 10kHz
User Defined Waveform function
CZ mode for turn on capacitive load simulation

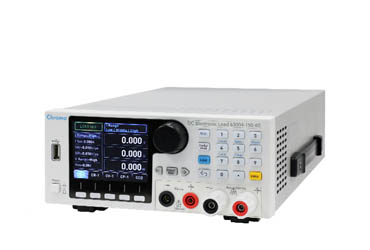

Programmable DC Electronic Load Model 63000 Series

Rated power：250W、350W
Voltage Range：150V
CC, CR, CV & CP operation modes
Full protection: OC (adjustable), OT, OP (adjustable) protection & OV warning, polarity reverse alarm
