Hybrid PV Inverter Test Solution

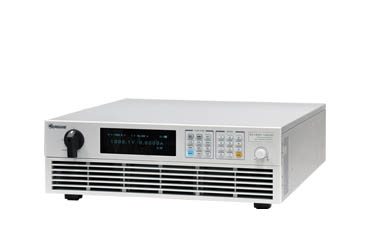

Solar Array Simulator Model 62000H-S series

NEW High-voltage 1800V for string PV inverter test solution
5kW/10kW/15kW/18kW up to 1MW
Fast Transient Response Solar Array Simulation
Build-in dynamic MPPT test profile of EN50530/Sandia/CGC-GF004/CGC/GF035/NB-T32004

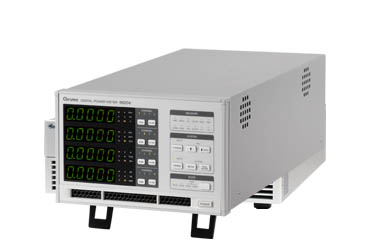

Digital Power Meter Model 66203/66204

Provides 0.1% FS measurement accuracy
Three phase measurement application
Voltage range: 15Vrms ~ 600Vrms (6 Range)
Current range: 5mArms ~ 20Arms (8 Range)
Wiring mode: 1P2W、1P3W、3P3W、3V3A、3P4W

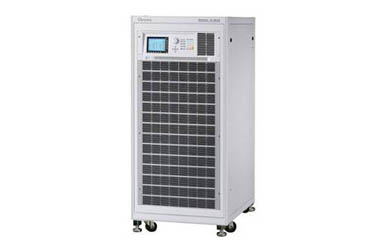

Regenerative Grid Simulator Model 61830/61845/61860/61800-100

Output power rating: 30kVA ~ 60kVA max. 300kVA (Parallel connect up to 5 units)
Three phase output voltage 0 ~ 300V/30Hz ~ 100Hz
Full 4-quadrant with regenerative capability
Capable of Power Line Distortion simulation

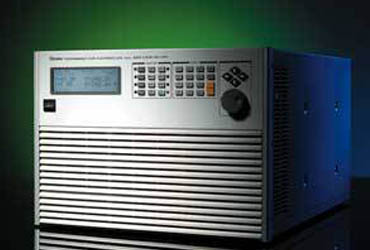

AC and DC Electronic load Model 63800 series

Power rating: 1800W, 3600W, 4500W
Parallel / 3-Phase function (AC mode only)
Constant & Rectified load modes for AC loading
CC, CR, CV, CP for DC loading

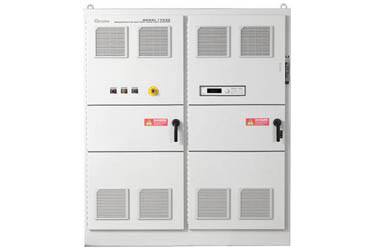

Regenerative Battery Pack Test System Model 17030

Voltage range：10~1200V
Power range：90~500kW
Dynamic charge/discharge test, driving cycle simulation

Battery Cell Charge/Discharge Test System Model 17011

High precision output and measurement up to 0.015% of full scale
Fast current response up to <100 μS
High sampling rate up to 10 mS

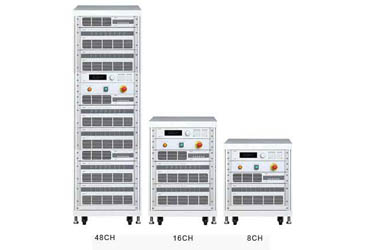

Regenerative Battery Pack Test System Model 17020

Voltage 20V/60V/100V/200V/500V for EV, storage battery pack/module test
Max 60 independant channels, parallel for high current

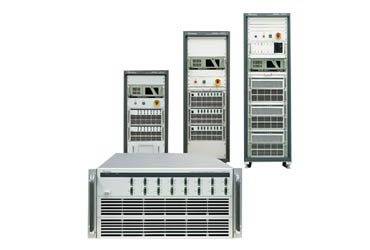

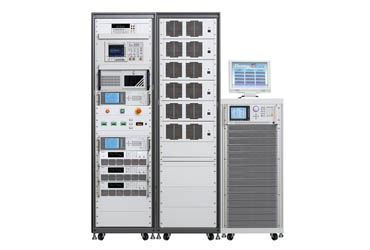

PV Inverter ATS Model 8000

High performance hardware device and software architecture
Meets IEEE1547, 1547.1, UL1741, GB/T 19939, NB/T 32004, CGC/GF004/GF035 preliminary test requirements.
Compliance with Sandia and EN50530 regulations and built-relevant test items
Solar Array Simulation
