LCR Meter / Auto Transformer Test System

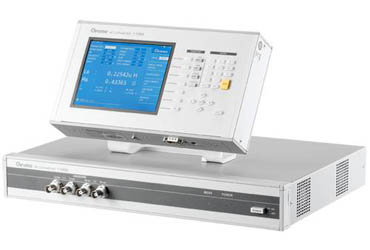

HF LCR Meter Model 11050 series

Test frequency: 75kHz~30MHz/1kHz~10MHz/60Hz~5MHz
Basic accuracy: 0.1%
Measurement time: 7ms

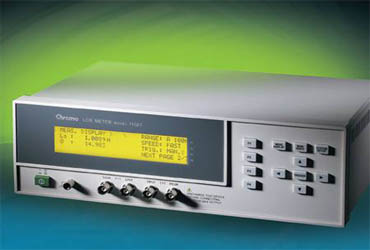

LCR Meter Model 11021/11021-L

Test frequency: 100, 120, 1k, 10kHz (11021) / 1k, 10k, 40k, 50kHz (11021-L)
Basic accuracy: 0.1% (11021) / 0.2% (11021-L)
Measurement time: 75ms

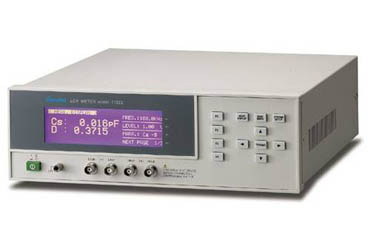

LCR Meter Model 11022/11025

Test frequency: 50, 60, 100, 120, 1k, 10k, 20k, 40k, 50k, 100kHz
Basic accuracy: 0.1%
Measurement time: 21ms

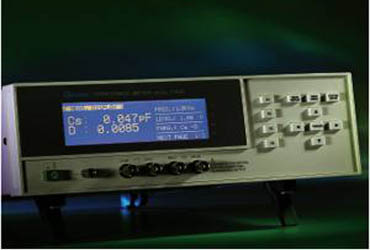

Capacitance Meter Model 11020

Test frequency: 100, 120, 1kHz
Basic accuracy: 0.1%
Measurement time: 5ms

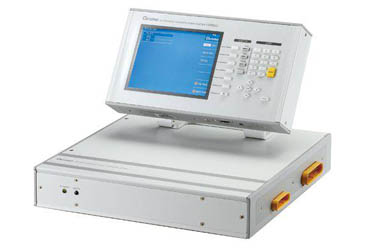

Automatic Transformer Tester Model 13350

Test frequency: 20Hz~200kHz
Basic accuracy: 0.1%
Optional fixtures for different applications: 20ch scan unit, 80ch scan box, and C.T. test fixture

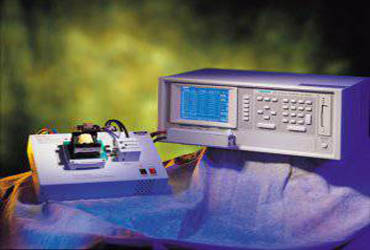

Transformer Test System / Component Analyzer Model 3250/3252/3302

Test frequency: 20Hz~200kHz (3250/3252) / 20Hz~1MHz (3302)
Basic accuracy: 0.1%
Optional 20ch scan box

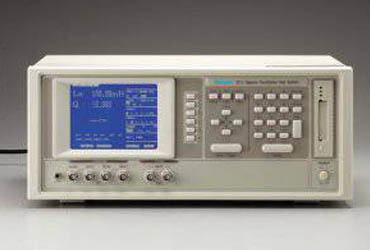

Telecom Transformer Test System Model 3312

Test frequency: 20Hz~1MHz
Basic accuracy: 0.1%
Test items for telecommunication transformer inspection

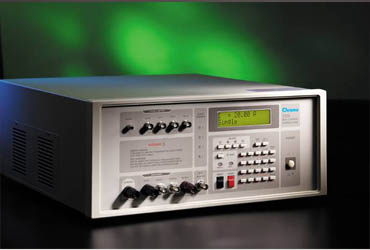

Bias Current Source Model 1310/1320/1320S/1320-10A

Frequency response: 20Hz~200kHz (1310) / 20Hz~1MHz (1320/1320S/1320-10A)
Output current: 0.001A~10.00A (1310/1320-10A) / 0.001A~20.00A (1320/1320S)
Directly controlled by LCR meter 11022/11025/3252/3302 (1320/1320S/1320-10A)

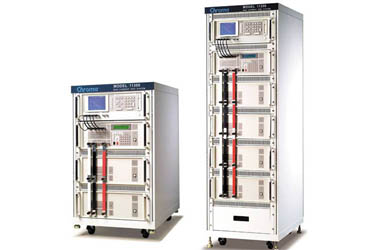

Bias Current Test System Model 11300

Frequency response: 20Hz~1MHz
Output current: up to 300.0 A by 20.00 A modules
Output current accuracy: 3%
Windows based software for curve analysis

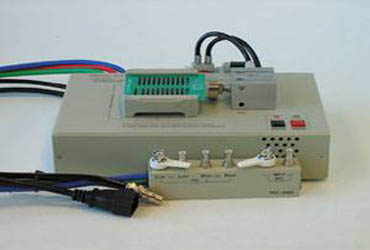

Test Fixture of Auto Transformer Scanning Box Model A132501

Optional test fixtures with multiple sizes
