Panels for Instrument Control and Monitoring

Panels for Instrument Control and Monitoring

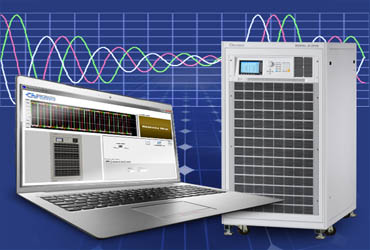

Introduction to Graphical User Interface - Softpanel Model 61800 Series

  • LIST, STEP and PULSE modes to simulate power line disturbance (PLD) for testing
  • Transient voltage simulation for power outage (compliant with low voltage ride through (LVRT) test)
  • Distortion waveform synthesis for harmonic and inter-harmonic
  • Measuring parameters include all orders of harmonic components

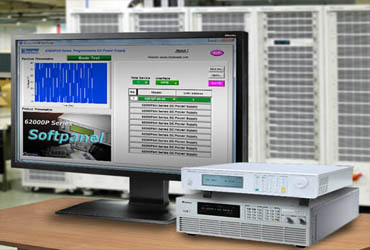

The introduction of 62000P and 62000H Series Model 62000P_H Series

  • NEW! HV components test standard LV123 for New Energy Vehicles.
  • Supports ISO16750-2, GS95024-2, VW80000, LV123 standards.
  • Control via GPIB/USB/Ethernet/RS232 interface.
  • Supports report function with sampling rate from 1 second to 10000 seconds, and up to a maximum of 1000 hours 59 minutes and 59 seconds.

Battery Simulator Model A170202

  • Multi-channel battery packs simulation.
  • Follow the battery cell curve behavior to simulate battery state.
  • Able to set frequently used parameters for battery pack and rapidly customize initial output state.
