Passive Component ATS

Passive Component ATS

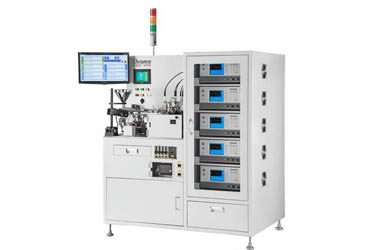

Inductor Test & Packing Machine Model 1870D series

  • Automated Production for Power Inductors
  • Test and packing speeds from 80ppm to1,800ppm

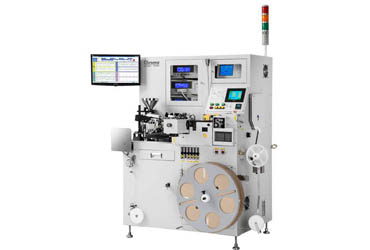

Inductor Layer Short ATS Model 1871

  • Test and packing speeds from 600ppm to 1500ppm

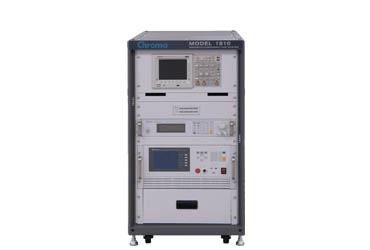

Magnetic Component Test System Model 1810

  • Test frequency: 20kHz~1MHz
  • Multiple modules for different voltage and current output
  • DC bias current: up to 60A
  • Windows based software for electrical characteristic analysis

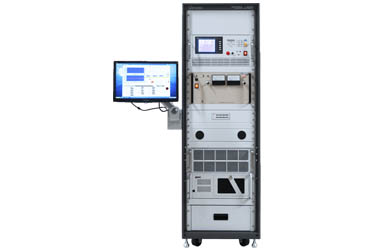

Capacitor Test System Model 1820

  • High frequency sine wave current:1kHz~20kHz, 10kHz~200kHz
  • DC bias voltage : 5000V max.
  • Capacitor endurance & temperature rising test

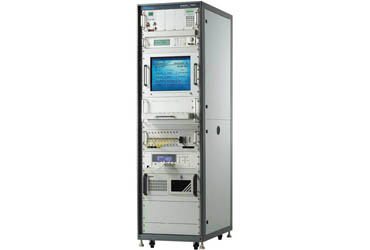

Component Automatic Test System Model 8800

  • Support instruments with GPIB, RS-232, or RS-485 I/F
  • Windows based software with open architecture
  • Test items and test programs editable by users
  • Comprehensive analyzing tools for report generating

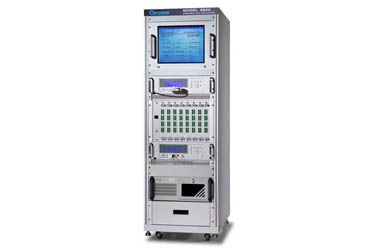

Electrical Double Layer Capacitor ATS (EDLC ATS) Model 8801

  • Measurement function: C, IR, and ESR
  • 10ch scanner for reducing test time
  • Windows based software with open architecture

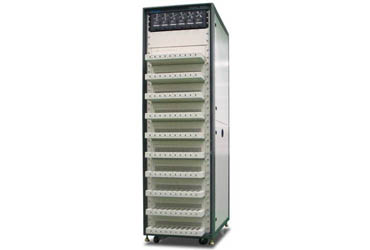

EDLC LC Monitoring System Model 8802

  • Modular design with 20ch leakage current monitoring boxes
  • Up to 200ch with 10 boxes per system
  • Windows based software for controlling multiple systems
